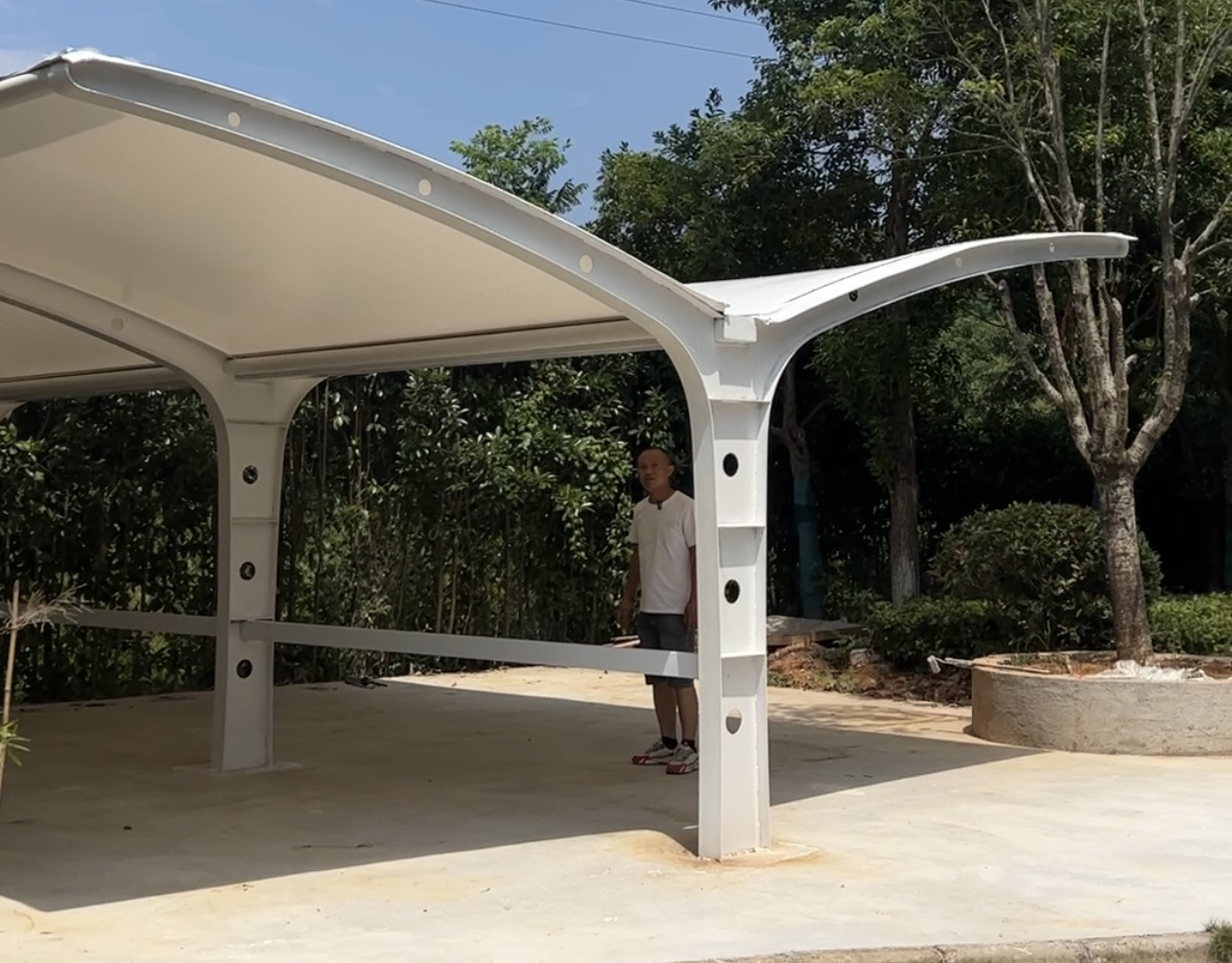

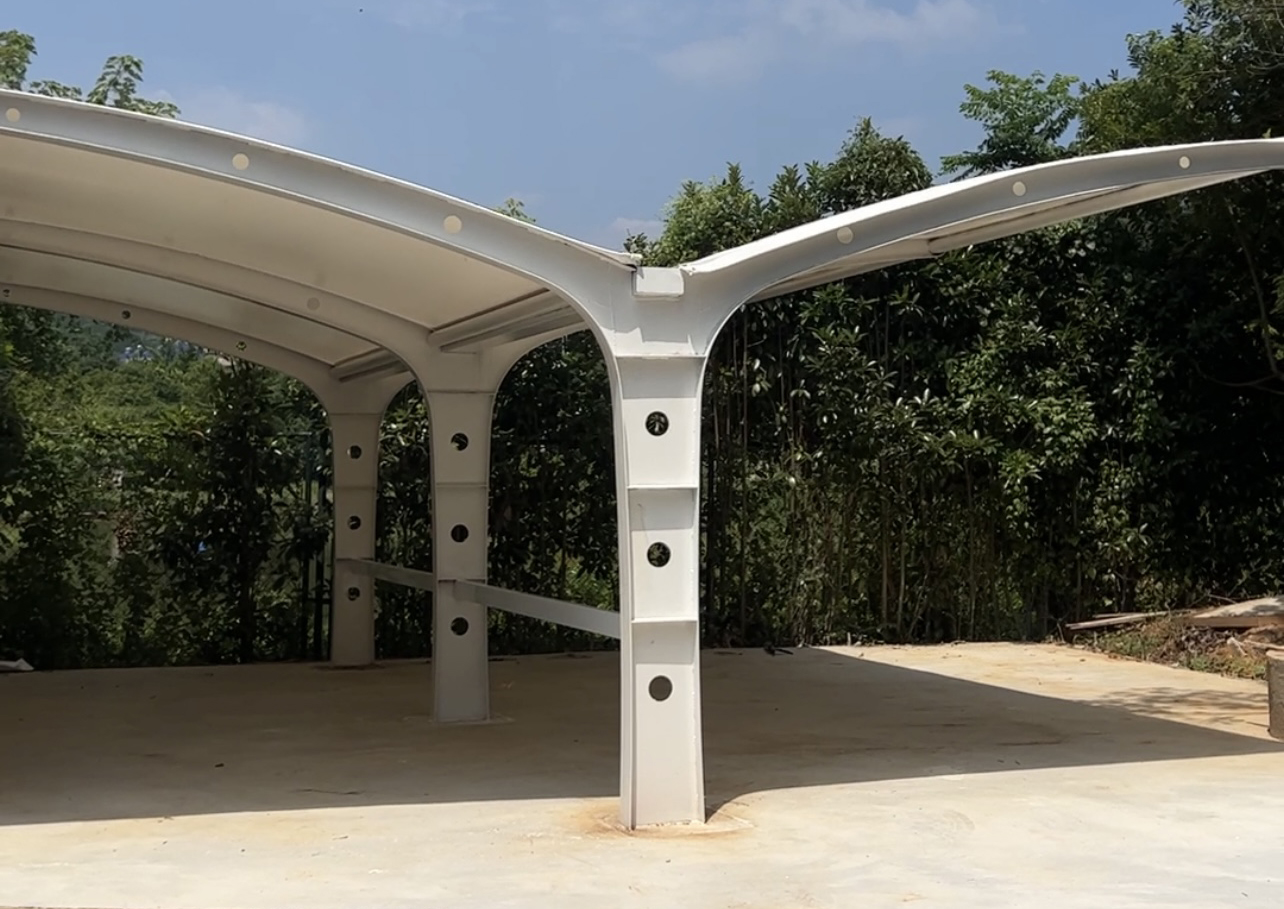

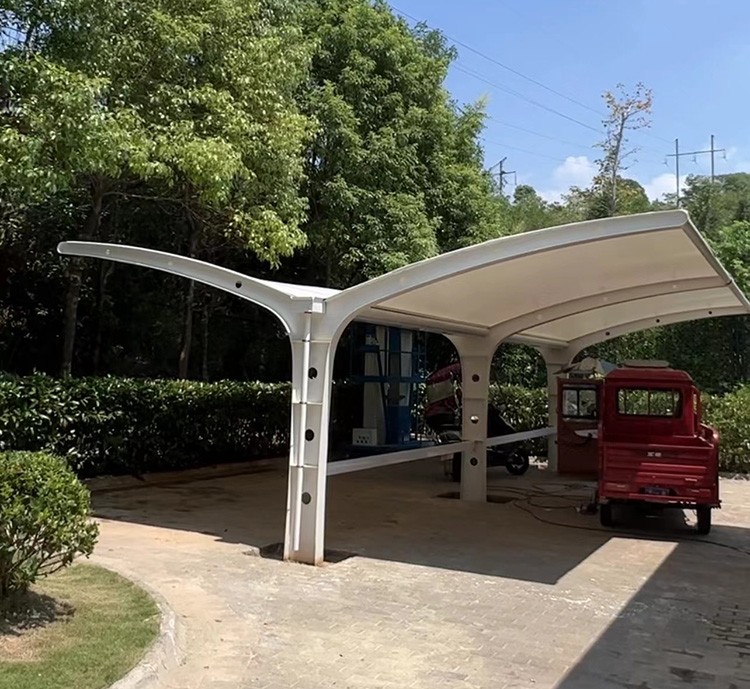

A  Y-Cantilever Car Parking Shade is an advanced, durable, and weather-resistant shade structure designed specifically for cars, SUVs, and other four-wheel vehicles. It features a Y-shaped cantilever support system with a PVDF-coated tensile membrane roof, providing superior protection against UV rays, rain, dust, and extreme weather while maximizing space efficiency.

Main Applications Like:

Residential parking (villas, apartments)

Commercial parking lots (offices, malls, hotels)

Public parking areas (airports, hospitals, institutions)

Key Features of The Y Cantilever PVDF Car Parking Shades

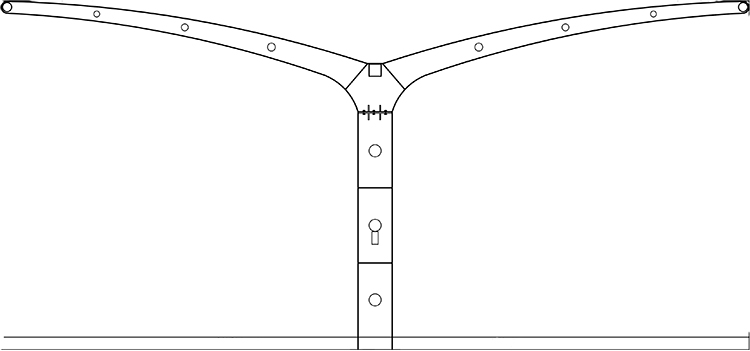

1. Y-Shaped Cantilever Design

• Dual-arm support system (Y-shaped columns) provides better load distribution than single-column designs.

• No front or middle obstructions, allowing easy parking and maneuverability for two-wheelers.

• Ideal for high-wind areas due to enhanced stability.

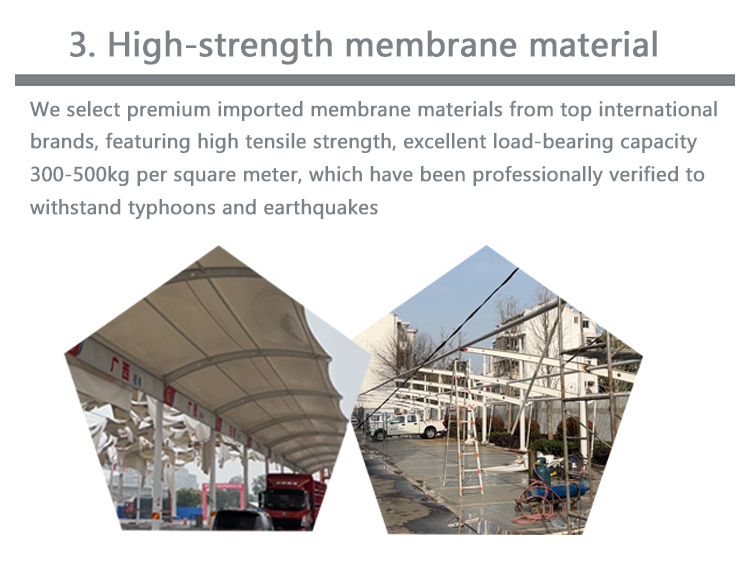

2. PVDF-Coated Membrane Roof

• Made from high-strength polyester fabric with PVDF (Polyvinylidene Fluoride) coating, offering:

• UV protection (blocks 99% of harmful rays, preventing paint & seat damage).

• Waterproof & dustproof (keeps bikes dry and clean).

• Self-cleaning surface (minimal maintenance required).

• 15-25 years lifespan (longer than PVC or polycarbonate alternatives).

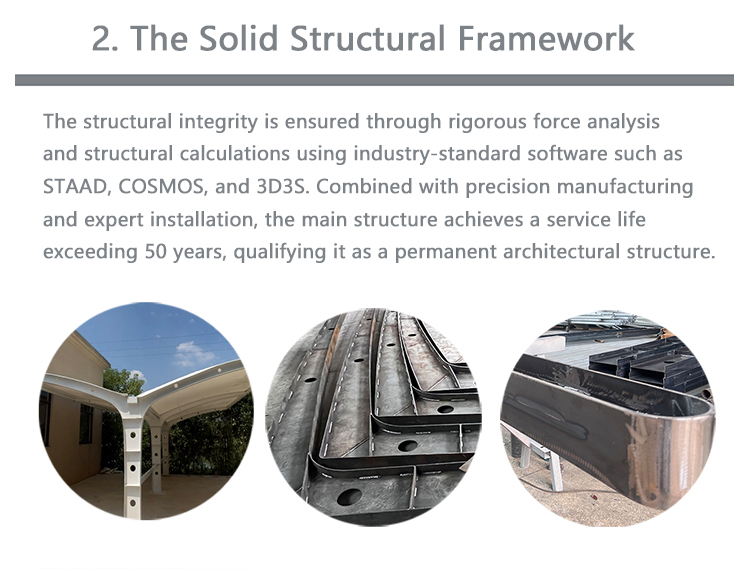

3. Steel Framework

• Galvanized or powder-coated steel for rust resistance.

• Pre-engineered for wind/snow loads (varies by location).

4. Advantages Over Traditional Bike Shelters

✔ Wider coverage – Y-shape allows more bikes per shade.
✔ Lightweight yet strong – Handles harsh weather better than metal roofs.
✔ Aesthetic & modern – Sleek, customizable colors & shapes.
✔ Low maintenance – No rust, no frequent repainting.

Comparison between Y-Cantilever PVDF and Traditional Standard Car Shades

Why Choose a Y-Cantilever Car Parking Shades?

✅ More space-efficient – No obstructive columns, allowing easy parking & maneuvering.
✅ Superior weather protection – PVDF blocks sun, rain, and dust effectively.
✅ Long-term cost-saving – No rust, no frequent replacements.

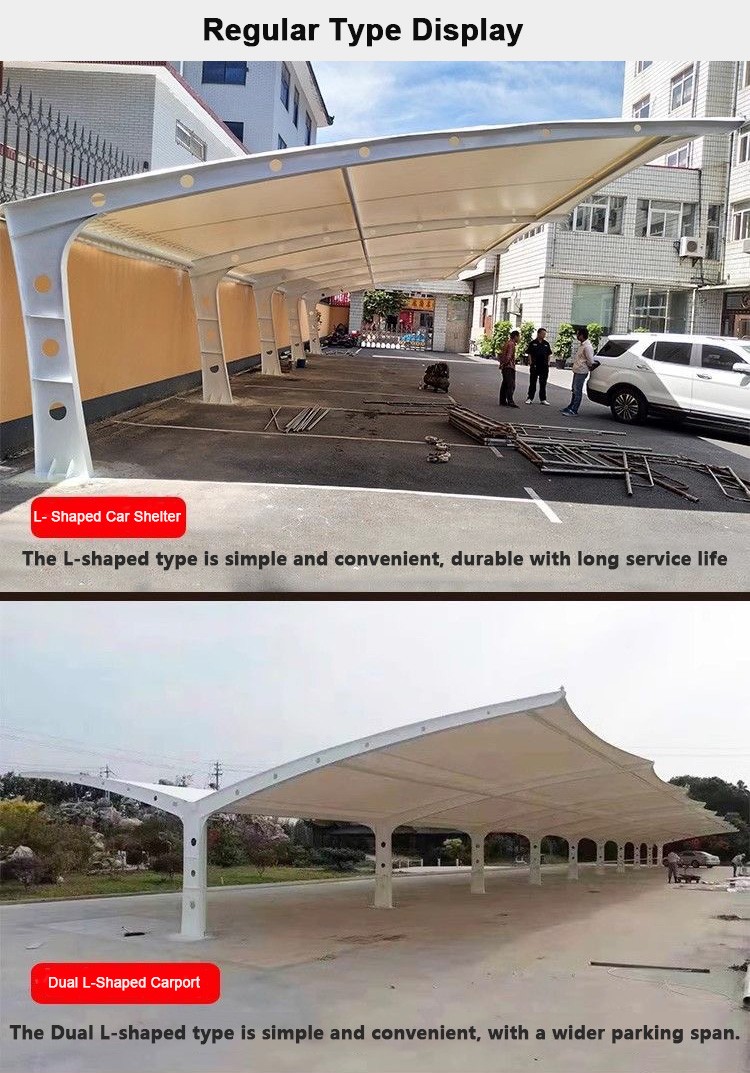

We professionally manufacture and supply one-Sided and double sided L-Shaped cantilever Parking Shades, offering a variety of size options that can be customized to your specific requirements.

[Standard Sizes]
Available standard specifications include:
✓ 6.0m × 3.0m (suitable for 1 car)
✓ 6.0m × 6.0m (accommodates 2 cars)
✓ Standard clearance height: 2.5m (height customizable)

Note: All dimensions can be adjusted as needed.

[Canopy Materials]
Optional materials:
✓ PVDF
✓ PTFE
✓ PVC

[Support Structure]
Structural configuration options:
✓ Base plate fixation
✓ Recessed base plate
✓ Embedded mounting design

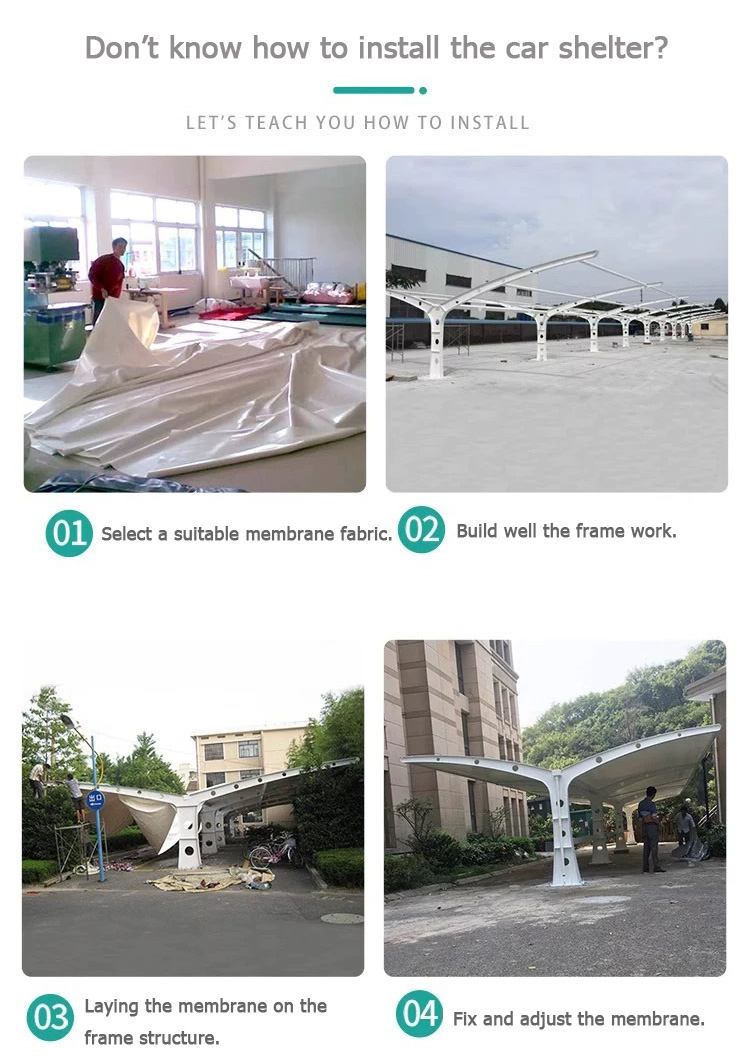

What Are The Main Process of Y Cantilever Car Parking Shades?

The process combines precision digital design, industrial fabric welding, and structural engineering to create durable, weather-resistant tensile carports. Modular production enables efficient on-site assembly. The Steps are:

1. Design & Engineering: CAD Modeling & Load Calculations

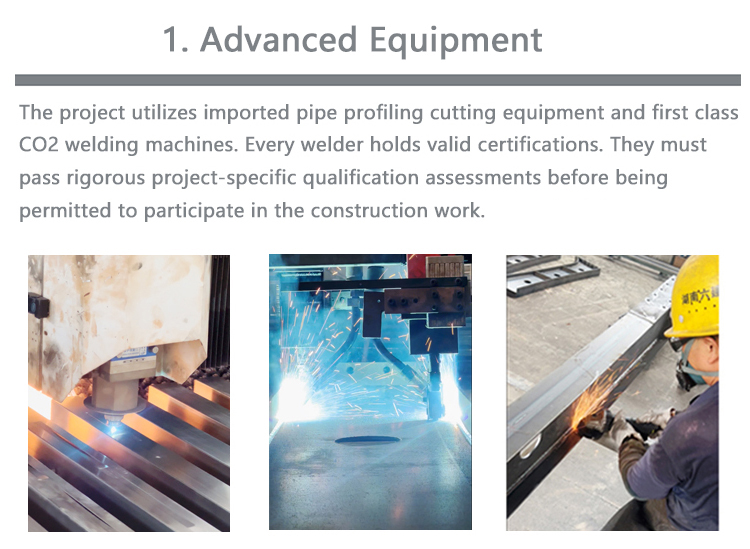

2. Material Preparation: Fabric Cutting &Frame Fabrication

3. Membrane Welding & Finishing: High-Frequency Welding &Edge Reinforcement

4. Frame Assembly: Primary Structure &Surface Treatment

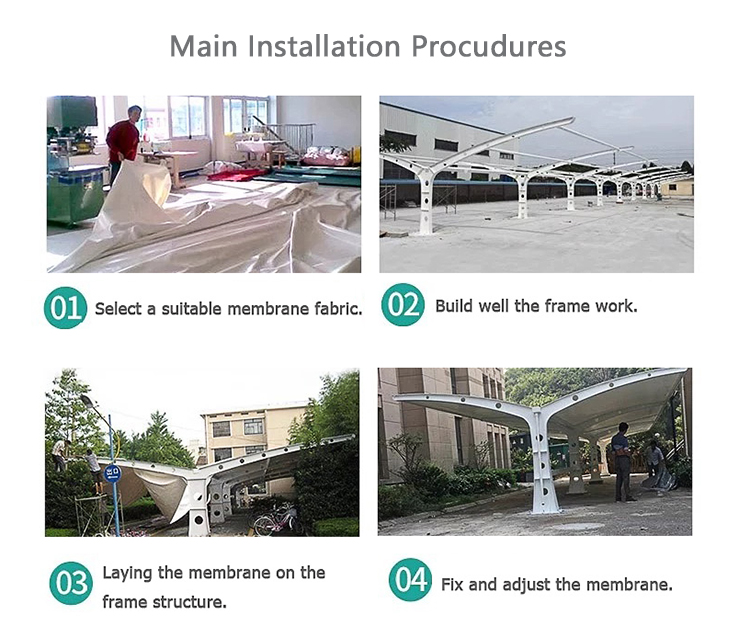

5. Membrane Installation: Tensioning &Final Adjustment

6. Quality Control & Testing: Leak Testing &Load Testing

7. Packaging & Shipping
